Isometric Twitch with the RDQ18 Regulatory-Unit Model

This demo repeats the Land (2017) cross-bridge twitch with crossbridge’s RDQ18 model, from Regazzoni, Dedè & Quarteroni [RDedeQ18].

A different lineage: regulatory-unit cooperativity, not a fitted cycle

Land2017/Lewalle2024 track a small number of lumped cross-bridge populations calibrated against bulk tension measurements. RDQ18 instead derives from a spatially explicit continuous-time Markov chain of regulatory units (RUs) along the thin filament, each able to influence its neighbors’ calcium binding and tropomyosin state – the mechanism generally invoked for cardiac muscle’s steep, cooperative force-calcium relationship. That \(\sim 10^{21}\)-state chain is reduced, via a closure on nearest-neighbor triplets, to a system of ODEs (\(\sim\)2200 of them) that crossbridge integrates directly; length dependence enters through an explicit actin-myosin overlap function \(\chi(\mathrm{SL})\) rather than a fitted gradient.

RDQ18 has no force-velocity effect – by design

RDQ18 reports active tension as Ta_max * compute_permissivity(): a scaling factor times the fraction of regulatory units in a force-permissive state. Nothing in that quantity, or in the ODEs that produce it, depends on shortening velocity \(\dot\lambda\) – which is why RDQ18.get_active_stiffness() identically returns zero. Per its docstring, this is a modeling property, not a missing feature: RDQ18 reproduces length-dependent activation but not the Hill force-velocity relation, and the corollary is that a segregated (staggered) coupling to tissue mechanics is unconditionally stable for this model without pulse.StabilizedActiveStress’s stabilization term – the instability that class exists to fix ([RQ21]) is driven entirely by strain-rate feedback that RDQ18 does not have. We still use StabilizedActiveStress below, with \(K_a \equiv 0\), purely so the same coupling code works across all four crossbridge demos; it is mathematically identical to plain pulse.ActiveStress here.

RDQ18 also differs in how its tension scale is set: Land2017, Lewalle2024 and RDQ20MF each compute an intrinsic tension from a fixed reference parameter (Tref/a_XB), whereas RDQ18 exposes Ta_max directly as a constructor argument – a free calibration knob rather than part of default_parameters().

from mpi4py import MPI

import dolfinx
import matplotlib.pyplot as plt
import numpy as np
import ufl
from crossbridge import RDQ18, calcium_trace

import pulse

1. The isometric twitch experiment

RDQ18 integrates at its own internal time step (model.dt, 25 \(\mu\)s – much finer than Land2017/Lewalle2024’s 1 ms) regardless of how often we couple to the FEM solve, so the standalone cell-model loop below sub-steps far more often than it reports back to pulse. RDQ18 does not define its own reference sarcomere length (SL0); we use 2.2 \(\mu\)m, the value used in its own module docstring example, matching RDQ20MF’s default.

def run_isometric_twitch(pre_stretch_mm: float, t_end: float = 0.6, couple_dt: float = 1e-2):
    """
    Runs an isometric twitch on a 10x1x1 mm slab, driven by the RDQ18
    regulatory-unit cross-bridge model.

    Returns the passive fiber stress, and (time, active fiber stress) arrays.
    """
    L = 10.0
    mesh = dolfinx.mesh.create_box(
        MPI.COMM_WORLD,
        [[0.0, 0.0, 0.0], [L, 1.0, 1.0]],
        [10, 2, 2],
    )

    f0 = dolfinx.fem.Constant(mesh, dolfinx.default_scalar_type((1.0, 0.0, 0.0)))
    s0 = dolfinx.fem.Constant(mesh, dolfinx.default_scalar_type((0.0, 1.0, 0.0)))

    Ta = pulse.Variable(dolfinx.fem.Constant(mesh, dolfinx.default_scalar_type(0.0)), "kPa")
    Ka = pulse.Variable(dolfinx.fem.Constant(mesh, dolfinx.default_scalar_type(0.0)), "kPa")

    material_params = pulse.HolzapfelOgden.transversely_isotropic_parameters()
    passive_model = pulse.HolzapfelOgden(f0=f0, s0=s0, **material_params)
    active_model = pulse.StabilizedActiveStress(f0=f0, activation=Ta, active_stiffness=Ka)

    model = pulse.CardiacModel(
        material=passive_model,
        active=active_model,
        compressibility=pulse.Compressible2(),
    )

    boundaries = [
        pulse.Marker(name="X0", marker=1, dim=2, locator=lambda x: np.isclose(x[0], 0)),
        pulse.Marker(name="X1", marker=2, dim=2, locator=lambda x: np.isclose(x[0], L)),
    ]
    geo = pulse.Geometry(mesh=mesh, boundaries=boundaries, metadata={"quadrature_degree": 4})

    def dirichlet_bc(V: dolfinx.fem.FunctionSpace) -> list[dolfinx.fem.bcs.DirichletBC]:
        mesh.topology.create_connectivity(mesh.topology.dim - 1, mesh.topology.dim)

        facets_fixed = geo.facet_tags.find(1)
        dofs = dolfinx.fem.locate_dofs_topological(V, 2, facets_fixed)
        u_fixed = dolfinx.fem.Function(V)
        u_fixed.x.array[:] = 0.0

        facets_stretch = geo.facet_tags.find(2)
        V_x, _ = V.sub(0).collapse()
        dofs_x = dolfinx.fem.locate_dofs_topological((V.sub(0), V_x), 2, facets_stretch)
        u_stretch_x = dolfinx.fem.Function(V_x)
        u_stretch_x.x.array[:] = pre_stretch_mm

        return [
            dolfinx.fem.dirichletbc(u_stretch_x, dofs_x, V.sub(0)),
            dolfinx.fem.dirichletbc(u_fixed, dofs),
        ]

    bcs = pulse.BoundaryConditions(dirichlet=(dirichlet_bc,))
    parameters = {"mesh_unit": "mm"}
    problem = pulse.StaticProblem(model=model, geometry=geo, bcs=bcs, parameters=parameters)

    Vs = dolfinx.fem.functionspace(mesh, ("DG", 1))
    active_model.lmbda_prev = dolfinx.fem.Function(Vs)
    active_model.lmbda_prev.x.array[:] = 1.0

    # --- Phase 1: passive pre-stretch ---
    problem.solve()

    F = ufl.variable(ufl.grad(problem.u) + ufl.Identity(3))
    f = F * f0
    f_norm = f / ufl.sqrt(ufl.inner(f, f))
    volume = mesh.comm.allreduce(
        dolfinx.fem.assemble_scalar(dolfinx.fem.form(ufl.det(F) * geo.dx)),
        op=MPI.SUM,
    )
    Tf = dolfinx.fem.form(ufl.inner(model.sigma(F) * f_norm, f_norm) * geo.dx)
    passive_force = mesh.comm.allreduce(dolfinx.fem.assemble_scalar(Tf), op=MPI.SUM) / volume

    # --- Phase 2: standalone cross-bridge twitch at the fixed sarcomere length ---
    cell = RDQ18(num_cells=1)
    SL0 = cell.p.get("SL0", 2.2)
    lmbda_pre = 1.0 + pre_stretch_mm / L
    SL_fixed = SL0 * lmbda_pre

    dt_cell = cell.dt
    couple_every = max(1, round(couple_dt / dt_cell))
    n_steps = int(round(t_end / dt_cell))

    times, active_stresses = [], []
    t = 0.0
    for i in range(n_steps):
        Ca = calcium_trace(np.array([t]))[0]
        cell.advance_step(dt_cell, Ca, SL_fixed)
        t += dt_cell

        if i % couple_every == 0:
            Ta.assign(float(cell.get_active_tension()[0]))
            Ka.assign(float(cell.get_active_stiffness()[0]))  # always 0.0 for RDQ18
            problem.solve()
            active_model.update_prev(problem.u)

            total_force = mesh.comm.allreduce(dolfinx.fem.assemble_scalar(Tf), op=MPI.SUM) / volume
            times.append(t)
            active_stresses.append(total_force - passive_force)

    return passive_force, np.array(times), np.array(active_stresses)

2. Running twitches at increasing pre-stretch

stretch_amounts = [0.0, 0.5, 1.0, 1.5]  # mm, i.e. 0%, 5%, 10%, 15% strain
strain_pcts = [(s / 10.0) * 100 for s in stretch_amounts]

passive_stresses = []
traces = []

for s, pct in zip(stretch_amounts, strain_pcts):
    p_force, times, active = run_isometric_twitch(s)
    passive_stresses.append(p_force)
    traces.append((times, active))
    print(f"stretch {pct:5.1f}%  passive={p_force:8.4f} kPa  peak active={active.max():8.4f} kPa")

stretch   0.0%  passive=  0.0000 kPa  peak active=27331.4552 kPa

stretch   5.0%  passive=840.7423 kPa  peak active=28764.4748 kPa

stretch  10.0%  passive=2755.5774 kPa  peak active=30098.6478 kPa

stretch  15.0%  passive=9921.8714 kPa  peak active=31296.0325 kPa

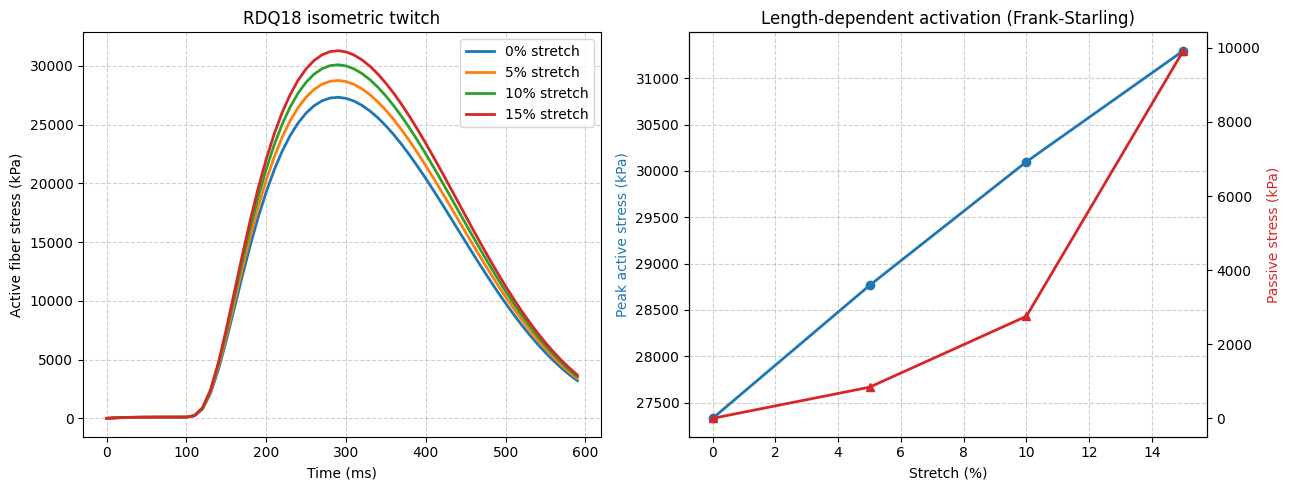

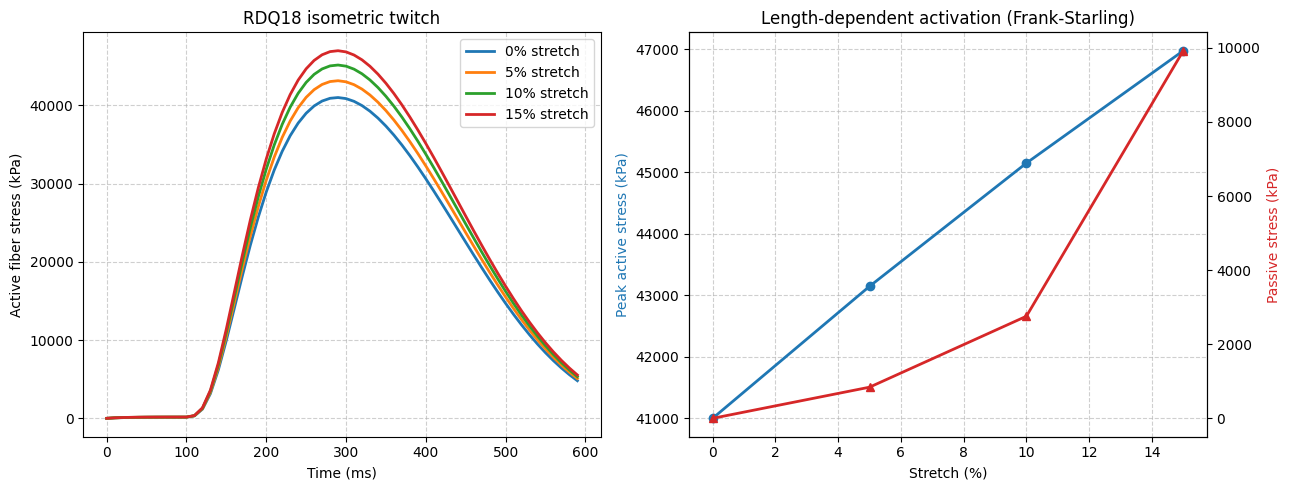

3. Plotting the results

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(13, 5))

for (times, active), pct in zip(traces, strain_pcts):
    ax1.plot(times * 1000, active, linewidth=2, label=f"{pct:.0f}% stretch")
ax1.set_xlabel("Time (ms)")
ax1.set_ylabel("Active fiber stress (kPa)")
ax1.set_title("RDQ18 isometric twitch")
ax1.legend()
ax1.grid(True, linestyle="--", alpha=0.6)

peak_active = [active.max() for _, active in traces]
ax2.plot(
    strain_pcts, peak_active, marker="o", linewidth=2, color="tab:blue", label="Peak active stress",
)
ax2b = ax2.twinx()
ax2b.plot(
    strain_pcts, passive_stresses, marker="^", linewidth=2, color="tab:red", label="Passive stress",
)
ax2.set_xlabel("Stretch (%)")
ax2.set_ylabel("Peak active stress (kPa)", color="tab:blue")
ax2b.set_ylabel("Passive stress (kPa)", color="tab:red")
ax2.set_title("Length-dependent activation (Frank-Starling)")
ax2.grid(True, linestyle="--", alpha=0.6)

fig.tight_layout()
plt.show()

4. Conclusion

RDQ18 reproduces the Frank-Starling trend through its overlap function \(\chi(\mathrm{SL})\) and cooperative RU kinetics alone, with \(K_a \equiv 0\) throughout every twitch above – confirmed by the fact that this demo’s results would be numerically identical if active_model were built as a plain pulse.ActiveStress instead of pulse.StabilizedActiveStress. Compare its twitch shape and force-calcium steepness against Land2017, Lewalle2024 and RDQ20MF in the comparison demo, and reach for RDQ20MF (below) instead whenever shortening velocity needs to matter.

References

[RDedeQ18]

Francesco Regazzoni, Luca Dedè, and Alfio Quarteroni. Active contraction of cardiac cells: a reduced model for sarcomere dynamics with cooperative interactions. Biomechanics and Modeling in Mechanobiology, 17(6):1663–1686, 2018. doi:10.1007/s10237-018-1049-0.

[RQ21]

Francesco Regazzoni and Alfio Quarteroni. An oscillation-free fully staggered algorithm for velocity-dependent active models of cardiac mechanics. Computer Methods in Applied Mechanics and Engineering, 373:113506, 2021. doi:10.1016/j.cma.2020.113506.
