A compiled C backend for cell models

beat advances the cell model at every degree of freedom with a function fun(states, t, parameters, dt) that acts on a (num_states, num_points) array (see the mathematical background and beat.odesolver.DolfinODESolver). Most demos use the NumPy code that gotranx generates for it, and some compile that code with numba. gotranx can also generate C. beat.c_backend compiles the C, adds a loop over the points, and wraps the result in a function with the same signature, so that it can be passed as fun without changing anything else.

In this demo we compare NumPy, Numba, C and C with OpenMP threads, for the ten Tusscher–Panfilov 2006 epicardial cell model (as in the spiral wave demo) with the generalized Rush–Larsen scheme: first the ODE step alone, then a small monodomain simulation. We also check that they give the same solution.

The C backend needs a C compiler when it runs. Any working dolfinx installation already has one, since FFCx compiles the finite element kernels with it. See the C backend guide for the options.

import os
import time as pytime
from pathlib import Path
from typing import Any

from mpi4py import MPI

import dolfinx
import gotranx
import matplotlib.pyplot as plt
import numpy as np

import beat
import beat.c_backend

try:
    import numba
except ImportError:
    numba = None  # type: ignore[assignment]

comm = MPI.COMM_WORLD

def print0(*args, **kwargs):
    # Print on rank 0 only
    if comm.rank == 0:
        print(*args, **kwargs)

The cell model

We load the .ode file once, and generate the NumPy code from it as in the other demos.

ode_file = (
    Path.cwd()
    / ".."
    / "odes"
    / "tentusscher_panfilov_2006"
    / "tentusscher_panfilov_2006_epi_cell.ode"
)
cell_ode = gotranx.load_ode(ode_file)

model_path = Path("tentusscher_panfilov_2006_epi_cell.py")
if not model_path.is_file():
    code = gotranx.cli.gotran2py.get_code(
        cell_ode,
        scheme=[gotranx.schemes.Scheme.generalized_rush_larsen],
    )
    model_path.write_text(code)

import tentusscher_panfilov_2006_epi_cell as model

num_states = cell_ode.num_states
v_index = model.state_index("V")
parameters = model.init_parameter_values(stim_amplitude=0.0)
dt = 0.05  # ms

2026-10-20 17:17:51 [info     ] Load ode /__w/fenicsx-beat/fenicsx-beat/demos/../odes/tentusscher_panfilov_2006/tentusscher_panfilov_2006_epi_cell.ode

2026-10-20 17:17:51 [warning  ] Dropping a guard whose replacement failed its numeric check value=0 var=Ca_i

2026-10-20 17:17:51 [warning  ] Dropping a guard whose replacement failed its numeric check value=0 var=K_i

2026-10-20 17:17:51 [warning  ] Dropping a guard whose replacement failed its numeric check value=0 var=Na_i

2026-10-20 17:17:53 [info     ] Num states 19

2026-10-20 17:17:53 [info     ] Num parameters 53

The backends

The NumPy backend is the generated function itself.

backends: dict[str, Any] = {"NumPy": model.generalized_rush_larsen}
build_times = {}

Numba compiles the same function the first time it is called, so we call it once on a small array and time that separately.

if numba is not None:
    tic = pytime.perf_counter()
    fun_numba = numba.jit(nopython=True)(model.generalized_rush_larsen)
    warmup = np.zeros((num_states, 2))
    warmup.T[:] = model.init_state_values()
    fun_numba(states=warmup, t=0.0, parameters=parameters, dt=dt)
    build_times["Numba"] = pytime.perf_counter() - tic
    backends["Numba"] = fun_numba
else:
    print0("numba is not installed, so the Numba backend is left out")

For the C backend, beat.c_backend.from_ode generates the C code with gotranx, compiles it on rank 0 with cc -O3 -march=native, and loads it on all ranks. The library is cached, keyed by a hash of the code, the compiler and the flags, so the next run skips the compilation.

tic = pytime.perf_counter()
fun_c = beat.c_backend.from_ode(cell_ode, scheme="generalized_rush_larsen")
build_times["C"] = pytime.perf_counter() - tic
backends["C"] = fun_c
print0(f"The C library is {fun_c.library_path}")

The C library is /github/home/.cache/beat/c_backend/1d24745712cc2d5dbec3ceb820b61fed/libbeat_scheme.so

With openmp=True the loop over the points runs in parallel with OpenMP threads, in addition to any MPI ranks. The number of threads is num_threads, or OMP_NUM_THREADS if it is not given. Here we use up to four threads.

if beat.c_backend.openmp_available():
    num_threads = min(4, os.cpu_count() or 1)
    tic = pytime.perf_counter()
    backends["C + OpenMP"] = beat.c_backend.from_ode(
        cell_ode,
        scheme="generalized_rush_larsen",
        openmp=True,
        num_threads=num_threads,
    )
    build_times["C + OpenMP"] = pytime.perf_counter() - tic
    print0(f"C + OpenMP uses {backends['C + OpenMP'].max_threads()} threads")
else:
    print0("The C compiler does not support OpenMP, so C + OpenMP is left out")
for name, seconds in build_times.items():
    print0(f"Building the {name} backend took {seconds:.2f} s")

C + OpenMP uses 4 threads
Building the Numba backend took 23.49 s
Building the C backend took 0.67 s
Building the C + OpenMP backend took 0.64 s

The ODE step alone

We time one step of each backend for 10³, 10⁴ and 10⁵ points, best of five.

sizes = [1_000, 10_000, 100_000]
repeats = 5


def time_ode_step(fun, num_points):
    states = np.zeros((num_states, num_points))
    states.T[:] = model.init_state_values()
    best = np.inf
    for _ in range(repeats):
        tic = pytime.perf_counter()
        fun(states=states, t=0.0, parameters=parameters, dt=dt)
        best = min(best, pytime.perf_counter() - tic)
    return best


step_times = {name: np.array([time_ode_step(f, n) for n in sizes]) for name, f in backends.items()}

print0("Time per step in ms (speed-up over NumPy)")
print0(f"{'points':>8}" + "".join(f"{name:>18}" for name in backends))
for i, n in enumerate(sizes):
    row = "".join(
        f"{1e3 * step_times[name][i]:10.2f} ({step_times['NumPy'][i] / step_times[name][i]:4.1f}x)"
        for name in backends
    )
    print0(f"{n:>8}{row}")

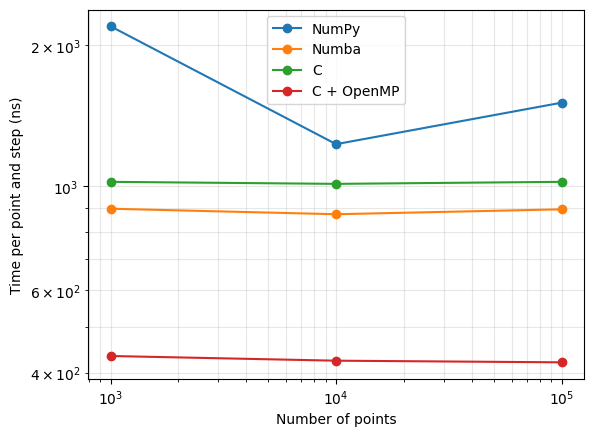

fig, ax = plt.subplots()
for name, times in step_times.items():
    ax.loglog(sizes, 1e9 * times / np.array(sizes), marker="o", label=name)
ax.set_xlabel("Number of points")
ax.set_ylabel("Time per point and step (ns)")
ax.grid(True, which="both", alpha=0.3)
ax.legend()
fig.savefig("c_backend_ode_step.png")

Time per step in ms (speed-up over NumPy)
  points             NumPy             Numba                 C        C + OpenMP
    1000      2.20 ( 1.0x)      0.90 ( 2.5x)      1.02 ( 2.1x)      0.43 ( 5.1x)
   10000     12.30 ( 1.0x)      8.72 ( 1.4x)     10.12 ( 1.2x)      4.24 ( 2.9x)
  100000    150.84 ( 1.0x)     89.31 ( 1.7x)    102.22 ( 1.5x)     42.10 ( 3.6x)

A monodomain simulation

Next we run the same small monodomain simulation with each backend: a \(20 \times 7\) mm sheet with a mesh size of 0.25 mm, stimulated in one corner, for 30 ms. The setup (units, \(\chi\), \(C_m\) and \(D\)) is that of the spiral wave demo. A beat.PerformanceMonitor records the time spent in the ODE step and in the PDE step separately.

L_x, L_y, h = 20.0, 7.0, 0.25  # mm
end_time = 30.0  # ms
mesh = dolfinx.mesh.create_rectangle(
    comm,
    [[0.0, 0.0], [L_x, L_y]],
    [round(L_x / h), round(L_y / h)],
    dolfinx.mesh.CellType.triangle,
)
tdim = mesh.topology.dim
stim_marker = 1
stim_cells = dolfinx.mesh.locate_entities(
    mesh,
    tdim,
    lambda x: np.logical_and(x[0] <= 1.5 + 1e-8, x[1] <= 1.5 + 1e-8),
)
stim_tags = dolfinx.mesh.meshtags(
    mesh,
    tdim,
    stim_cells,
    np.full(len(stim_cells), stim_marker, dtype=np.int32),
)
chi = beat.units.ureg.Quantity(1400.0, "cm**-1")
C_m = beat.units.ureg.Quantity(1.0, "uF/cm**2").to("uF/mm**2").magnitude
D = 0.122  # mm^2 / ms


def run_monodomain(fun):
    time = dolfinx.fem.Constant(mesh, 0.0)
    I_s = [
        beat.stimulation.define_stimulus(
            mesh=mesh,
            chi=chi,
            time=time,
            subdomain_data=stim_tags,
            marker=stim_marker,
            mesh_unit="mm",
            amplitude=50_000.0,
            start=0.0,
            duration=2.0,
        ),
    ]
    pde = beat.MonodomainModel(
        time=time,
        mesh=mesh,
        M=D * C_m,
        I_s=I_s,
        C_m=C_m,
        dx=I_s[0].dZ,
        params={
            "petsc_options": {"ksp_type": "cg", "pc_type": "hypre", "pc_hypre_type": "boomeramg"},
        },
    )
    ode = beat.odesolver.DolfinODESolver(
        v_ode=dolfinx.fem.Function(dolfinx.fem.functionspace(mesh, ("P", 1))),
        v_pde=pde.state,
        fun=fun,
        init_states=model.init_state_values(),
        parameters=parameters,
        num_states=num_states,
        v_index=v_index,
    )
    monitor = beat.PerformanceMonitor(log_frequency=0, comm=comm)
    solver = beat.MonodomainSplittingSolver(pde=pde, ode=ode, monitor=monitor)
    t = 0.0
    for _ in range(round(end_time / dt)):
        solver.step((t, t + dt))
        t += dt
    return pde.state.x.array.copy(), monitor.timings


results = {name: run_monodomain(f) for name, f in backends.items()}

numpy_timings = results["NumPy"][1]
print0(
    f"{'backend':>12}{'total (s)':>12}{'ODE (s)':>10}{'PDE (s)':>10}"
    f"{'ODE speed-up':>14}{'total speed-up':>16}",
)
for name, (_, timings) in results.items():
    print0(
        f"{name:>12}{timings['total_step']:12.2f}{timings['ode_step']:10.2f}"
        f"{timings['pde_step']:10.2f}"
        f"{numpy_timings['ode_step'] / timings['ode_step']:14.1f}"
        f"{numpy_timings['total_step'] / timings['total_step']:16.1f}",
    )

     backend   total (s)   ODE (s)   PDE (s)  ODE speed-up  total speed-up
       NumPy        2.70      2.26      0.39           1.0             1.0
       Numba        1.69      1.27      0.37           1.8             1.6
           C        1.82      1.41      0.37           1.6             1.5
  C + OpenMP        1.32      0.78      0.48           2.9             2.0

The ODE step gets faster, but the PDE step takes the same time with every backend, so the overall speed-up is smaller than that of the ODE step alone.

The backends give the same solution

The backends evaluate the same expressions, and differ only in rounding (the C library and NumPy compute exp and log slightly differently), so the membrane potential should agree to round-off.

v_numpy = results["NumPy"][0]
v_peak = comm.allreduce(v_numpy.max(initial=-np.inf), op=MPI.MAX)
differences = {
    name: comm.allreduce(np.max(np.abs(v - v_numpy), initial=0.0), op=MPI.MAX)
    for name, (v, _) in results.items()
}
print0(f"peak membrane potential: {v_peak:.1f} mV")
for name, difference in differences.items():
    print0(f"max |v_{name} - v_NumPy| = {difference:.2e} mV")
assert v_peak > 0.0, "the stimulus did not produce an action potential"
assert all(difference <= 1e-9 for difference in differences.values())

peak membrane potential: 38.7 mV
max |v_NumPy - v_NumPy| = 0.00e+00 mV
max |v_Numba - v_NumPy| = 1.88e-12 mV
max |v_C - v_NumPy| = 1.54e-12 mV
max |v_C + OpenMP - v_NumPy| = 1.54e-12 mV

Notes

• Other schemes and code generation options. from_ode takes the name of any gotranx scheme, and passes codegen_kwargs on to gotranx.codegen.CCodeGenerator.scheme. If you already have C code (for example from gotranx ode2c), use beat.c_backend.compile_scheme.

• The cache. The libraries are stored in ~/.cache/beat/c_backend, or in $BEAT_C_CACHE if it is set. In parallel, rank 0 compiles and the other ranks load the library from there, so on a cluster the cache directory must be on a file system that all nodes share.

• -march=native. The library is compiled inside your job, on the compute node. With a native flag the cache key includes the CPU features the compiler detects (its predefined macros), so a library built on a login node with a different CPU (e.g. with AVX-512) is not reused on the compute nodes. Pass cflags=("-O3",) for a portable library.

• OpenMP and MPI. OpenMP threads combine with MPI ranks. Set num_threads (or OMP_NUM_THREADS) to at most cores-per-node / ranks-per-node. See the guide.
